Fränkische Alpex-Duo XS Transition Coupling Flat-Sealing 32-G1 1/4
FRTC32114
£19.97 inc. VAT
£16.64 ex. VAT
Typically available in 3-5 business days
-

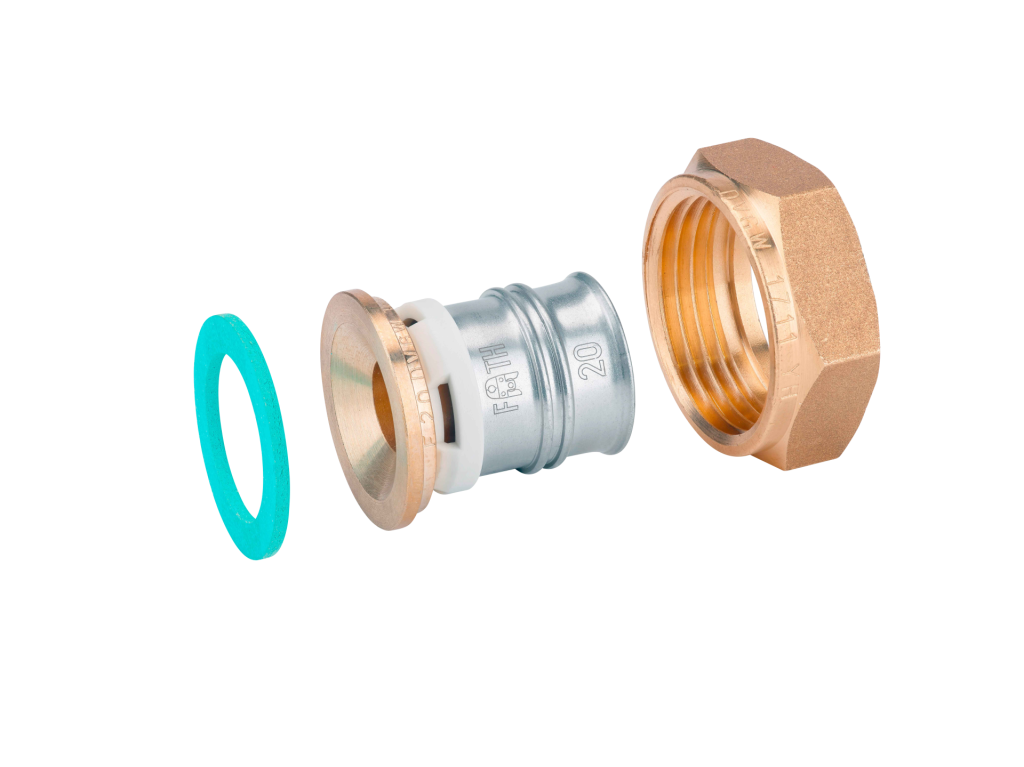

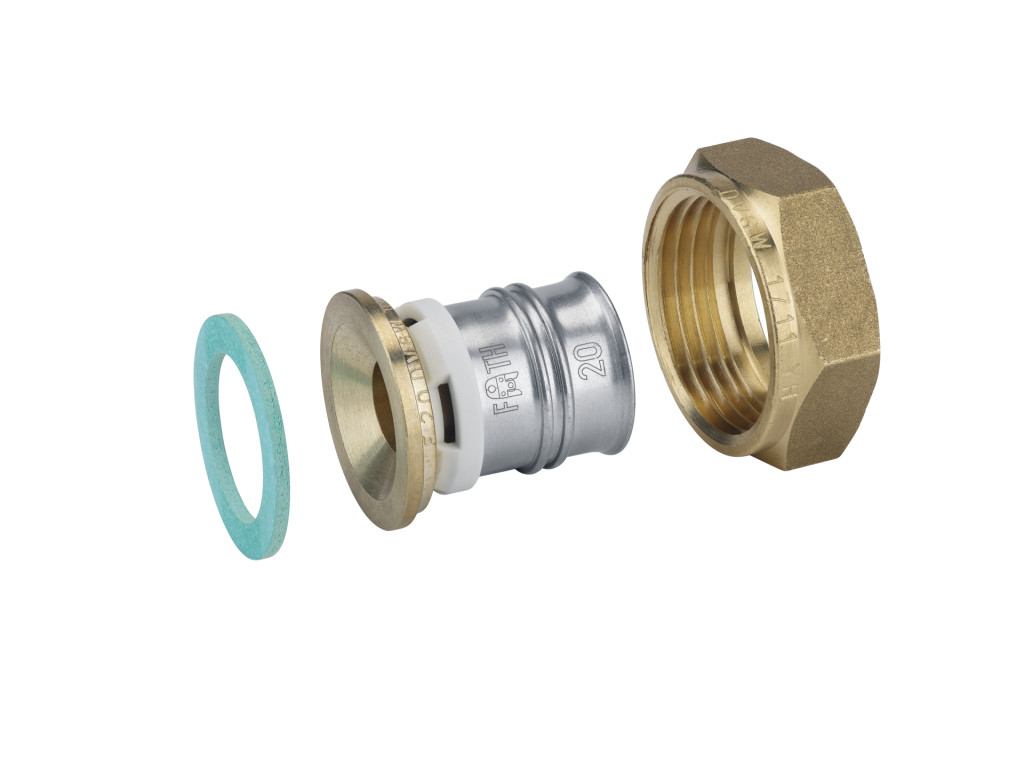

Flat-sealing adapter made of dezincification-resistant brass to create detachable connections in drinking water and heating systems featuring a white fixation ring with integrated inspection holes, fixed stainless steel pressing sleeve and leak function. Pressable with pressing contours F and TH.
- 95°C at 10bar constant operation
- Flow optimised pipe and fittings
- 100% impermeable to oxygen
- Corrosion & incrustation resistant
- Low thermal linear expansion, comparable with copper
- Easy to bend by hand
- Leak before press function
- Dezincification-resistant lead-free brass CW724R
- Fittings can be crimped with either F or TH jaws
- No pipe calibration required due to protected recessed O-rings
- Brand
- Fränkische
- Guarantee
- 50 Years
- Category
- Alpex-duo XS Transition Coupling
- Range
- Alpex-Duo XS
- Product Code
- FRTC32114
- Size
- flat-sealing 32-G1 1/4
- Main Material
- Lead Free Brass
- Main Colour
- Brass
- Weight
- 179 g
- Length
- 52 mm
- Width
- 46 mm
- Height
- 49 mm
- Diameter
- 32 mm
- Max Pressure
- 10 Bar
- GTIN
- 4013960394641
-
