Tectora Diffuser - Aluminium - 2 x 16mm Channels - 0.5mm x 390mm x 1000mm
WHS-TE-ALUDP1
£9.25 inc. VAT
£7.71 ex. VAT
Typically available in 3-5 business days
-

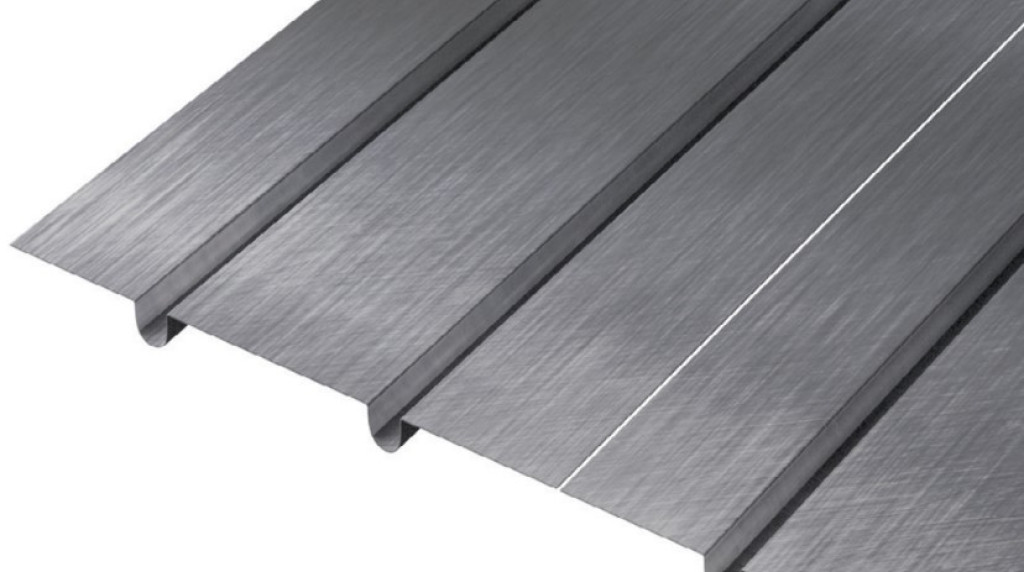

The Warmup Diffusion Plates are press-formed heat diffusing aluminium plates. They are lightweight and easy to install, creating a responsive, efficient underfloor heating system with an even heat distribution. The diffusion plates are suitable for use with the Econna and Tectora systems. The thinnest aluminium plate is 0.5mm thick and can be fixed to the joists using a heavyduty staple gun or screwed down. Warmup's Tectora System is a hydronic underfloor heating system designed for use within either battened or suspended timber floors, including TJI joist constructions. The system features insulation installed between floor joists with the heating pipes inserted within diffusion plates fitted above for optimal heat distribution. It is a dry-fitted hydronic system, requiring no screeding. It is suitable for almost any floor finish, in particular wood or engineered wood but for installation under tiles, additional layers of plywood or tile backer board may be required to create a rigid base. The Tectora System is suitable for use with all Warmup 16mm heating pipes.
- Diffusion plates allow evenly and quickly distributed heat
- If you accidentally damage the heating system during installation, return it to Warmup and we will replace it with another heater of the same make and model free.
- Holds the pipe in the correct position to ensure there are no hot spots.
- Requires no screeding
- Comprehensive choice of board strengths and thicknesses available to match individual requirements
- For use with floating floors
- Ideal for new-builds
- Lifetime warranty limited
- Brand
- Warmup
- Category
- Insulation Board
- Range
- Insulation Board
- Product Code
- WHS-TE-ALUDP1
- Main Material
- Aluminium
- Main Colour
- White
- Weight
- 606 g
- Length
- 1000 mm
- Width
- 388 mm
- Height
- 20 mm
- GTIN
- 5034526007231
-
